項目名稱ltem
|
性能參數Parameter
|
|

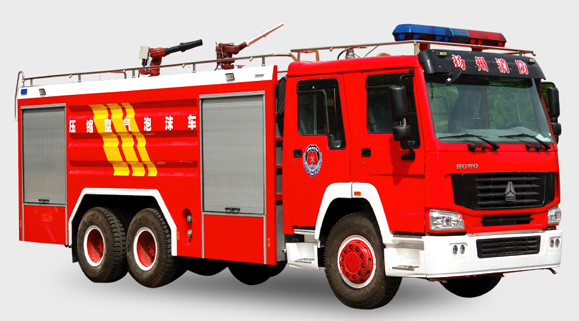

A類泡沫消防車CAFS fire truck
|
MX5270GXFAP110AS/MX5270GXFAP110BS
|
|
底盤Chassis
|
ZZ1257N4347C
|
|
外形尺寸
Dimensions (length×width×height) (mm)
|
9629×2495×3615
|
|
司乘人員（人）Cab seating capacity
|
6
|
|
發動機型號Engine model
|
WD615.95（國Ⅲ China III emission standards）
|
|
發動機功率Engine power(kW)
|
247/2200r/min
|
|
軸距Wheel base(mm)
|
4325＋1350
|
|
最高車速Max. speed(km/h)
|
102
|
|
載液量Tank capacity (kg)
|
10700（水water 7600、B類泡沫液class B foam 2100、A類泡沫液class A foam 1000）
|
|
消防泵型號Pump model
|
RSD80GB-18美國赫爾泵HALE
|
|
消防泵流量 Pump flow(L/s/MPa)
|
98/1.0
|
|
消防炮Fire monitor
|
型號Model
|
PLKD64
|
|
流量Flow(L/s)
|
64
|
|
射程(m)Reach
|
水water≥65、泡沫foam≥60
|
|
A類壓縮空氣泡沫滅火系統型號
Compressed air class A foam system model
|
Snuffer 9145壓縮空氣泡沫系統compressed air foam system
|
|
混合液最大流量、壓力Max. flow/pressure of mixture
|
20L/s 0.8～0.9MPa
|
|
壓縮空氣最大流量、壓力Max. flow/pressure of compressed air
|
94～96L/s 0.8～0.9MPa
|
|
A類泡沫炮型號Class A foam monitor model
|
PSKD40W電控消防水炮 electrically controlled fire monitor
|
|
流量Flow (L/s/MPa)
|
30/1.0
|
|
射程(m) Reach
|
≥50
|
