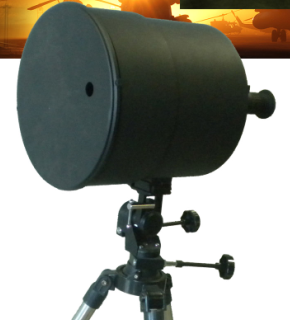

點擊圖片查看大圖該產品具有單目和雙目兩種規格的大型超遠距離微光夜視儀。采用高級像管和先進的光學系統，具有高分辨率的特點。該產品采用準三代或三代像增強器，具有防強光和防眩目功能，可用于軍事觀察，監視，海關緝毒，邊海防偵察，公安檢查緝私，水利監測，艦船觀察等。
產品特點
1.高放大倍率 2.遠距離觀察（微光下3000米）
3.先進的光學系統 4.高分辨率，防強光
5.精致耐用的材質 6.重型望遠鏡三腳架，自動亮度調節
7.可靠易操作性強 8.兩年保修期，終生維護
Product De
Large ultra long-range shimmer The product has a monocular and binocular night vision two specifications. Using advanced image tube and advanced optical system with high resolution features. The product uses the Russian quasi-generation image intensifier, with anti-glare and anti-glare function, can be used for military observation, surveillance, customs drug enforcement, border and coastal surveillance, police check smuggling, water monitoring, ship observation.
Product Features
1 high magnification2 long-distance high-magnification observation (3000 meters under dim light)
3 advanced optical system 4 high-resolution, anti-glare
5 exquisite and durable material 6 heavy telescope tripod, automatic brightness adjustment
7 reliable and easy maneuverability 8-year warranty and lifetime maintenance
|
Classification像增強器等級 |
OMNI III,IV準三代或三代 |
|
Magnification倍率（倍x） |
Night夜視16x |
|
Objective Lens Focus物鏡焦距（毫米mm） |
412 |
|
Objective Lens dimeter物鏡直徑（毫米mm） |
310 |
|
FOV視場（度°） |
3 |
|
Detection range觀察距離（米m） |
3000 |
|
Focus range聚焦范圍 |
200-∞ |
|
Resolution typical分辨率 （線對/毫米lp/mm） |
63-72 |
|
Diopter adjustment目鏡視度調節范圍（屈光度） |
+4/-4 |
|
Dimension外型尺寸（毫米mm） |
500x350x310 |
|
Net weight主機，三腳架重量（凈重公斤kg） |
15和11 |
|
Battery type電源類型 |
1XCR123lithium battery一節3V鋰電池 |
|
Power supply電源電壓（伏v） |
2.8±0.8 |
|
Operating temperature工作溫度范圍（℃） |
-40/+50 |
|
Humidity25℃ 相對濕度 |
98% |
|
Battery lifetime連續工作小時hours |
80 |
